JP-2 Pneumatic paper Breaking Machine

1.Prepares cut material specifically for cutter cutting.

2.It ensures the continuity of cutting and greatly improves the output of materials.

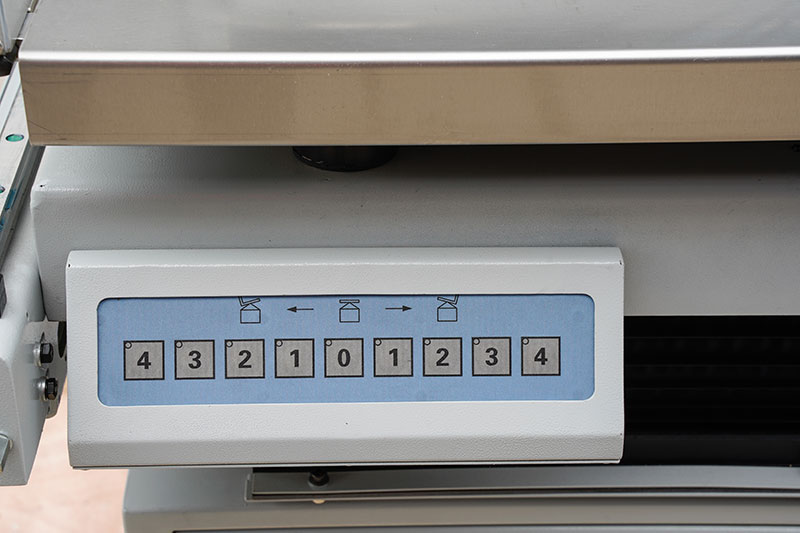

3.JP-2 model has automatic double exhaust function. According to different paper, you can choose 4 different inclination angles on the left and right, and straighten the paper, which greatly improves the cutting accuracy and lays a solid foundation for the quality of the final product.

4.With left, middle and right shaking function, it has a particularly obvious effect on the finishing of special paper (thin paper), saving time and effort and increasing efficiency.

5.The safety circuit design conforms to the EU safety level, which protects your operation safety and keeps you away from danger at all times.

6.The chrome-plated working platform saves the user's maintenance time.

Technical data

Model JP-2
Table length(Y) [mm/in] 1150/45.28
Table width (X)  [mm/in]  900/35.43
Machine width(B)  [mm/in] 1550/61.02
Machine length(A)  [mm/in] 1290/50.79
Machine height  [mm/in] 1875/73.82
Machine weight [kg] 600
Minimum stack height  [mm/in] 30/1.18
stack height   [mm/in] 165/6.5
Minimum table height  [mm/in] 860/33.86
table top height [mm/in] 950/37.40



Configuration List

serial number  configuration Brand model number place of origin
1 manual switch PUNA Taiwan
2 Proximity switches Panasonic Japan
3 limit switches Panasonic Japan
4 Inverter Delta Taiwan
5 push button switches Admiralty-Moeller Germany
6 relays Schneider France
7 contactor Schneider France
8 Relay Schneider France
9 air pump controller Schneider France
10 circuit breakers Schneider France
11 air pump LDL Taiwan
12 ball screw TBI Taiwan
13 rails TBI Taiwan
14 PLC Delta Taiwan
15 Reducer Liming Taiwan
16 switching power supply MEAN WELL Taiwan
17 Bearing NSK Japan
18 Cylinder Fangrui Taiwan
19 Floating Joint Fangrui Taiwan



Jogger Elctrical Device

Name Brand
contactor schneider
relay omron
breaker schneider
button schneider
Travel switch panasonic
SCR Power Regulator chint
frequency converter Delta
relay schneider
proximity switch omron
PLC Mitsubishi
transformer The great wall
universal switch By mowller
